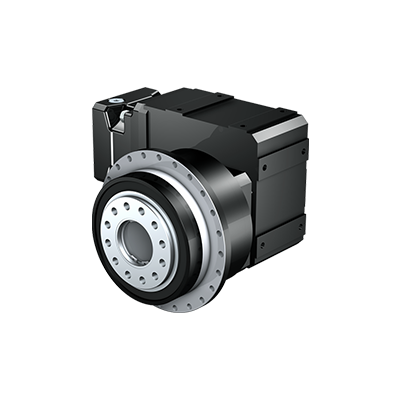

PHQK Series

Quattro power due to four-planet system. Highly rigid drive unit made up of an input multistage right-angle gear unit and a robust planetary output stage. Flange output shaft. Short motor adapter length. Easy and secure motor mounting. Can be attached to almost any make of servo motor.

产品简介
产品特点
产品规格
产品尺寸
资料下载

Shaft designs

- Flange shaft
Output available on side 3 or 4.
Output Side
Bearing Design

Pretensioned angular contact bearings at the output in an O-arrangement, ideally suited for helical geared rack and pinion drive.
Mounting Positions

- Any mounting position.
- You can find the explanation of the mounting positions and the respective quantities of lubricant in the document Quantity of lubricant for gear units ID 441871
Lubricants and Maintenance

- Synthetic lubricant CLP HC ISO VG 150
- Lubricated for life
- Maintenance-free
Paint Finish

Black RAL 9005
Motor Adapter ME

- Universal motor mounting system for almost all synchronous servo motors.
- Option large (MEL) for large motors.
- Fast and secure motor mounting.
- Robust, balanced coupling.
- Thermal length compensation.
- Low mass inertia.
EasyAdapt
Option ServoStop

- Integrated in the motor adapter, electrically released spring-loaded brake.
- When the power is removed, in the event of a power failure or an emergency stop ServoStop will brake both drive and machine shaft safely and reliably.
- Zero-backlash plug-in coupling.
ServoStop Motor Adapter with Brake
Recommendation Motor

EZ synchronous servo motors

For further information see Synchronous Servo Motors

Type	Ratio	Max. perm. acceleration torque [Nm]	Max. perm. input speed in cyclic operation [1/min]	Backlash [arcmin]	Torsional stiffness [Nm/arcmin]
PHQ521_K1_	22 – 385	316 – 425	4500 – 6000	4	67 – 70
PHQ721_K2_	22 – 382	492 – 950	4000 – 5500	4	124 – 136
PHQ821_K4_	22 – 381	1708 – 2600	3500 – 5000	3.5	375 – 400
PHQ931_K5_	44 – 580	4764 – 5760	3000 – 4500	4	748 – 771
PHQ1031_K7_	45 – 591	10000	2700 – 3800	4	1523 – 1560
PHQ1131_K8_	45 – 583	12299 – 22000	2600 – 3600	4	2528 – 2623
PHQ1231_K9_	75 – 572	20691 – 43000	2800 – 3400	4	4556 – 4664
