Quick DC-Link

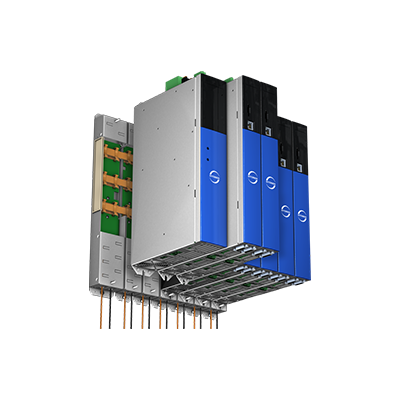

The 6th generation series of STOBER drive controllers have the option for DC link connection. This technology makes it possible for the regeneratively produced energy of one drive to be used as motor energy by another drive. The Quick DC-Link rear section module was developed to set up a reliable and efficient rail connection to the DC link connection. This accessory connects the DC links of the individual drive controllers by means of copper rails that can carry a load of up to 200 A. The rails can be attached without a tool using quick fastening clamps.
  • 产品简介
  • 产品特点
  • 产品规格
  • 产品尺寸
  • 资料下载
Quick DC-Link

If you want to connect SD6 drive controllers as part of Quick DC-Link, you will need the DL6 Quick DC-Link modules.
Horizontal connection

For the horizontal connection, you can get DL6 in different designs suitable for the size of the drive controller.
Installation

The contact between the drive controllers is made by standard standard copper rails (5 x 12 mm).
They are installed without tools by quick-fix clamps.
